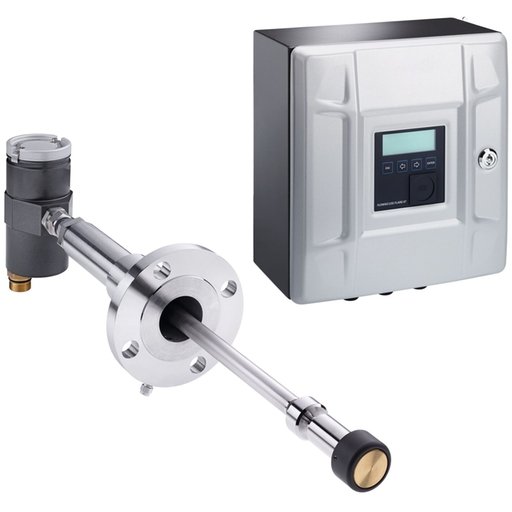

Flowsic100 – Multipath Ultrasonic Gas Flow Meter for Custody Transfer
The Endress+Hauser Flowsic100 is a high-accuracy multipath ultrasonic gas flow meter designed for fiscal and custody transfer measurement of natural gas. Its proven technology and comprehensive approvals make it the preferred choice for gas metering stations.
Key Features
- 4-path or 6-path ultrasonic measurement
- Nominal diameter: DN50 to DN1000
- Accuracy: ±0.3% of reading
- No pressure drop
- Compliance: AGA-9, OIML R137, EN 17089, MID
- Process temperature: −40 to +60 °C
- Process pressure: up to 250 bar
- Communication: Modbus RTU, pulse, HART
- Integrated flow computer option
- ATEX, IECEx, FM, CSA certified
Applications
Natural gas custody transfer, fiscal metering, gas distribution, LNG regasification, biogas metering.
Technical Specifications
| Parameter | Value |
|---|---|
| Measuring paths | 4-path or 6-path |
| Nominal diameter | DN50–DN1000 |
| Accuracy | ±0.3% of reading |
| Process pressure | Up to 250 bar |
| Compliance | AGA-9, OIML R137, EN 17089, MID |
| Communication | Modbus RTU, pulse, HART |
